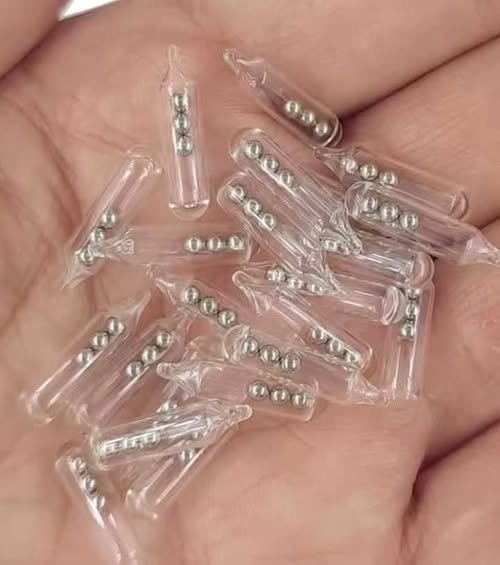

Have you ever stumbled across a tiny glass tube containing three small metal balls and wondered what on earth it was for? At first glance, it might look like a mysterious electronic component, a miniature thermometer, or even a decorative item. These little glass tubes have puzzled countless people who discover them inside old gadgets, toys, or electrical equipment.
In reality, these tiny components serve a very practical purpose and have been used in electronics for decades. Let’s explore what they are, how they work, and where you’re most likely to find them.
What Are These Tiny Glass Tubes?
The small glass tube with three tiny metal balls inside is commonly known as a tilt switch, also called a ball tilt sensor or mercury-free tilt switch.
Unlike older mercury tilt switches that relied on liquid mercury, these modern versions use small metal balls to complete or break an electrical circuit whenever the device changes position.
The glass enclosure protects the internal parts from dust, moisture, and corrosion while allowing the metal balls to move freely.
How Does a Ball Tilt Switch Work?
The principle is surprisingly simple.
Inside the sealed glass tube are:
- Three tiny conductive metal balls
- Two or more metal contacts
- An airtight glass enclosure
When the tube is tilted in one direction, gravity causes the metal balls to roll against the electrical contacts.
This completes the electrical circuit, allowing electricity to flow.
When the device is tilted back or turned another way, the balls roll away, breaking the circuit and stopping the flow of electricity.
Think of it as an automatic on/off switch that responds to movement rather than someone pressing a button.
Why Are There Three Metal Balls?
Many people wonder why manufacturers use three balls instead of just one.
There are several reasons:
Better Electrical Contact
Multiple balls increase the contact surface, creating a more reliable electrical connection.
Improved Durability
Using several balls reduces wear on individual components and helps the switch last longer.
Reduced False Triggers
Three balls provide more consistent operation by minimizing accidental switching caused by vibrations.
Increased Sensitivity
The balls distribute movement more evenly, allowing the switch to respond more accurately to changes in orientation.
Where Are These Glass Tube Switches Used?
These tiny sensors appear in many everyday products.
1. Children’s Toys
Many motion-activated toys use tilt switches to detect movement or orientation.
Examples include:
- Talking dolls
- Toy cars
- Interactive stuffed animals
- Musical toys
2. Flashlights
Some flashlights use tilt switches to activate special lighting modes or detect positioning.
3. Alarm Systems
Security devices often use tilt switches to detect:
- Window movement
- Door opening
- Safe tampering
- Motion sensors
4. Household Appliances
Certain appliances rely on tilt detection for safety.
Examples include:
- Electric heaters
- Hair dryers
- Portable fans
If the appliance tips over, the switch cuts off power to reduce fire risks.
5. Automotive Electronics
Vehicles may use tilt switches in systems such as:
- Hood alarms
- Anti-theft devices
- Trunk sensors
- Motion detection systems
6. Industrial Equipment
Factories use tilt switches in:
- Machinery safety controls
- Conveyor systems
- Position monitoring devices
- Industrial automation
Are They the Same as Mercury Switches?
No.
Older tilt switches contained liquid mercury, which flowed between electrical contacts.
Although mercury switches were highly reliable, mercury is toxic and environmentally hazardous.
Modern ball tilt switches replaced mercury with stainless steel or conductive metal balls, making them safer and easier to recycle.
Advantages of Ball Tilt Switches
These tiny devices remain popular because they offer several benefits.
Simple Design
There are no complicated electronics involved.
Long Lifespan
With very few moving parts, they can operate for years.
Low Cost
Manufacturing costs are relatively inexpensive.
Low Power Consumption
They don’t require continuous electricity to detect movement.
Compact Size
Their small dimensions allow them to fit into tiny electronic devices.
Do They Wear Out?
Eventually, yes.
Over time, repeated movement may cause:
- Worn electrical contacts
- Oxidation
- Reduced conductivity
- Intermittent operation
Fortunately, these components are inexpensive and relatively easy to replace in many devices.
Can You Test One at Home?
Yes.
If you have a multimeter:
- Set the meter to continuity mode.
- Touch the probes to the switch terminals.
- Slowly tilt the glass tube.
- Listen for the continuity beep or watch the reading.
If the circuit opens and closes as you tilt it, the switch is functioning correctly.
Are They Dangerous?
Generally, no.
Modern ball tilt switches contain only metal balls inside a sealed glass tube.
However:
- The glass can break if dropped.
- Avoid handling broken glass with bare hands.
- Dispose of damaged electronic components properly.
Unlike mercury switches, these versions do not contain toxic liquid mercury.
Why Do People Mistake Them for Something Else?
Because of their unusual appearance, many people assume these glass tubes are:
- Tiny thermometers
- Medical ampoules
- Decorative objects
- Electronic fuses
- Scientific instruments
In reality, they’re simply mechanical motion sensors that have quietly powered countless devices for decades.
Interesting Facts
- Ball tilt switches require no software or programming.
- Some can operate for millions of switching cycles.
- They continue to be used despite the popularity of digital motion sensors.
- They are especially useful in low-cost electronic products.
- Their operation relies entirely on gravity.
Frequently Asked Questions
Can I replace a mercury switch with a ball tilt switch?
In many applications, yes. However, their switching characteristics may differ, so always check the equipment’s specifications before replacing components.
Do these switches work in any direction?
Not always. Most are designed to activate only when tilted beyond a specific angle.
Why are they made of glass?
Glass is non-conductive, chemically stable, and provides a sealed environment that protects the internal components from moisture and contamination.
Are they still used today?
Yes. Although electronic accelerometers have become common in smartphones and advanced devices, ball tilt switches remain widely used in inexpensive electronics, toys, alarms, and safety equipment because of their simplicity and low cost.
Final Thoughts
The tiny glass tube containing three small metal balls may seem mysterious, but it’s actually a clever and reliable ball tilt switch. By using gravity to move the metal balls and complete an electrical circuit, this small component can detect changes in orientation without the need for batteries, software, or complex electronics.
Despite the rise of modern sensors, these humble switches continue to play an important role in toys, appliances, security systems, vehicles, and industrial equipment. Their simple design, affordability, and dependable performance make them a lasting example of practical engineering hidden inside many of the devices we use every day.
